The Sonic Digital MG Premium from Weber Ultrasonics is an advanced ultrasonic welding generator designed for industrial applications. This system offers extensive configuration options, digital frequency control, and user-friendly operation, making it ideal for complex production processes.
The Premium version of the Sonic Digital MG is even easier to operate.  All settings can be entered directly on the generator and status and messages can be viewed on the display.

Features:

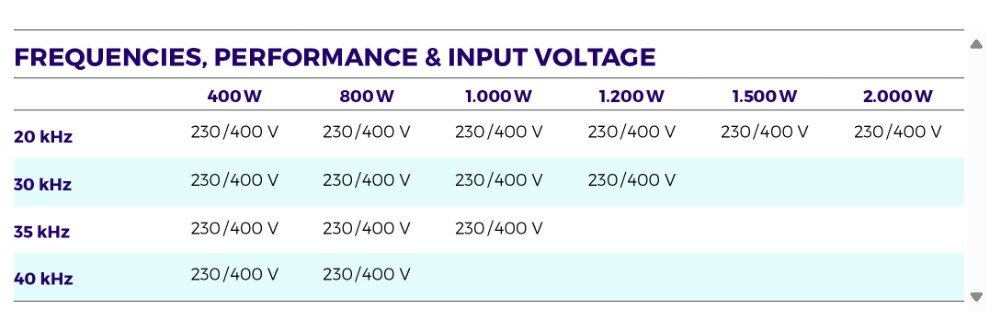

• Frequency range: 20 kHz, 30 kHz, 35 kHz and 40 kHz
• Power options: 400 W to 2,000 W
• Digital technology: SonoScan for automatic frequency optimization
• Electronic amplitude control: Adjustable from 50% to 100%
• Advanced process monitoring: Programmable parameters for up to 99 welding processes
• Protection: Short circuit, overload, and temperature management
• Mounting options: DIN rail or housing for multiple modules
• Interface: 15-pin I/O interface and optional RS-485 connection
• User-friendly operation: Settings can be entered directly on the device with status display on the screen

Thanks to its modular design and intelligent configuration, the Sonic Digital MG Premium provides a reliable and efficient solution for ultrasonic welding processes.
